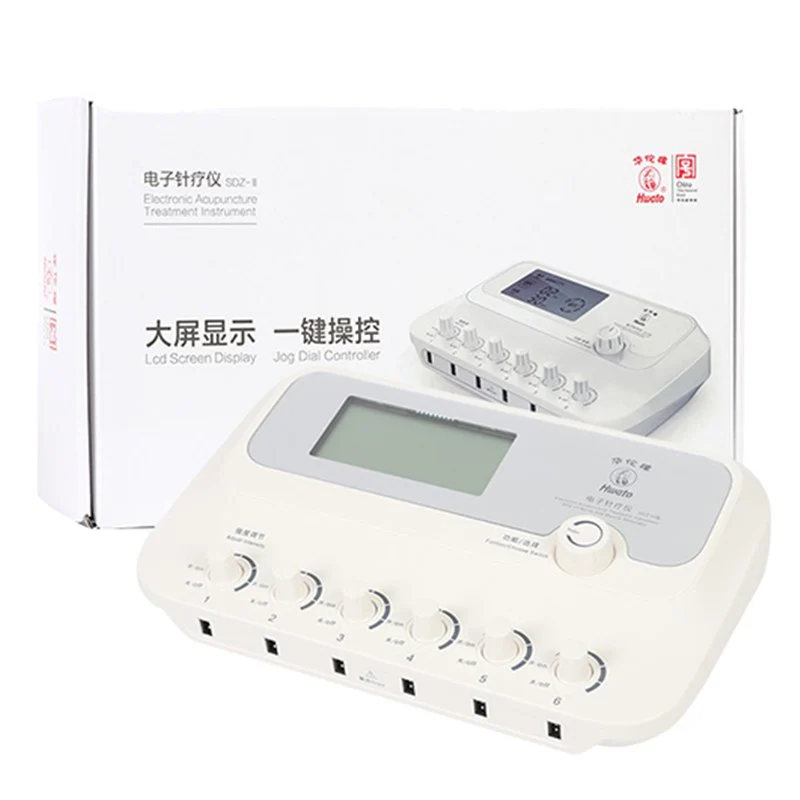

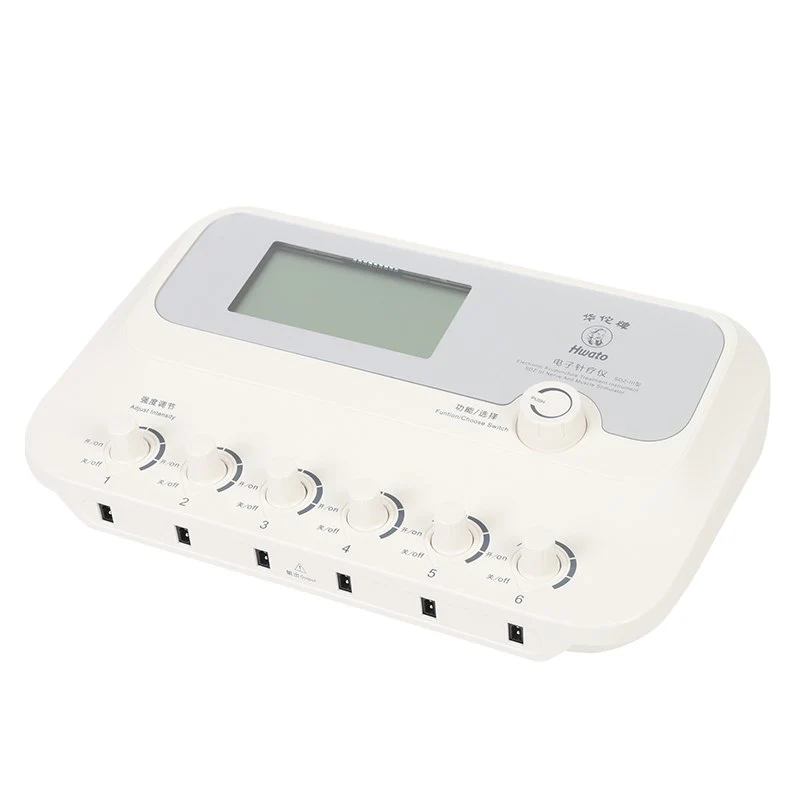

SDZ-III Electronic Acupuncture Treatment Instrument( Nerve and Muscle Stimulator ) is combined modern micro computer technique with traditional Chinese Medicine Acupuncture and Meridian Theory, based on the traditional SDZ series of electronic acupuncture treatment instrument. It consists of the generator, electrodes, AC Adapter and output wires four parts.lt doesn't contain acupuncture needles, but with Filiform Needle Electrode Metal Clip. Can use acupuncture needles as Electric-Acupuncture therapy, and recommend to use disposable acupuncture needles.


SDZ-Ill Nerve and Muscle Stimulator is used for applying low frequency pulse to stimulate the acupoints of human body, may be used to apply an electrical current to electrodes on a patient 's skin to treat pain, which is indicated for use in the practice of acupuncture by qualified practitioners of acupuncture.

Output Pulse Wave: un-symmetry bi-direction pulse wave

Pulse Frequency: frequency adjustable in 1 - 100Hz, ± 15% tolerance
Output pulse frequency:

Continuous Wave: 1-100Hz adjustable continuously

Intermittent Wave: Continuous Wave frequency 1-100Hz adjustable continuously; interval time between Continuous Wave groups 5 sec, duration time of Continuous Wave 15 secretary.

Distant-dense Wave: frequency of distant wave is one fifth of the frequency of dense wave, frequency of dense wave is 5-100Hz adjustable, the duration time of distant wave 5sec, the duration time of dense wave 10 secretary.

Output Pulse width: 0.20 ms ± 30% (EMC TEST)

Output current: <10mA (Load 250Ω)

Output Pulse channel: 6 channels

Power supply:

Power DC9V .1MIntemal Electrical Power Source or AC Adapter (input AC220V 50Hz AC110/ 60Hz; output DC9V)
We will send the corresponding power plug and voltage according to your country.

Input power: 10VA

Output power: 0.3VA (Load 250Ω)

Volume: 210mm x 100mm x 300mm

Quality: 0.7 kg
